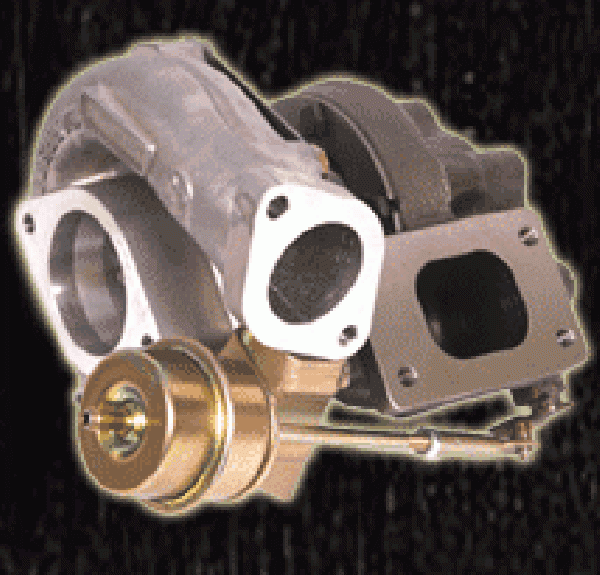

Garrett TurboChargers - GT2860R
(Code: D-707160 5005) Was: $1,472.32 $1,308.42 incl GST Ball Bearing, With Actuator, Internal waste gate Turbine A/R 0.64 CHRA: 448751-0001 Power: 250-320Hp (1.6L-2.5L) Qty: Add to cart	Click to enlarge

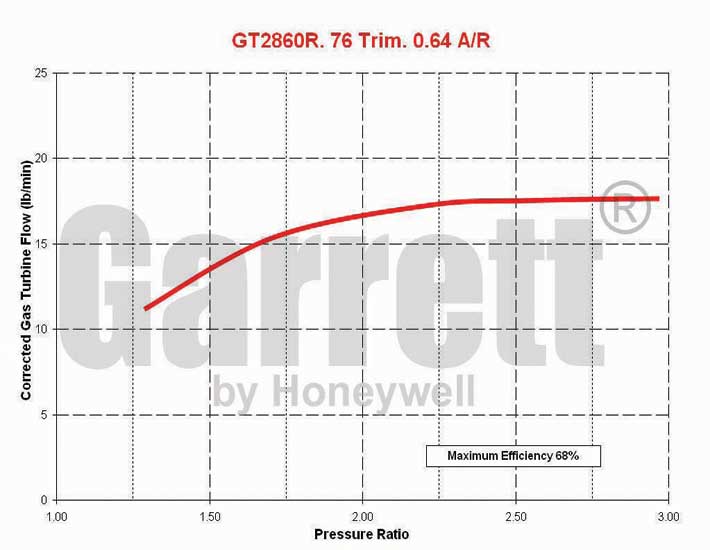

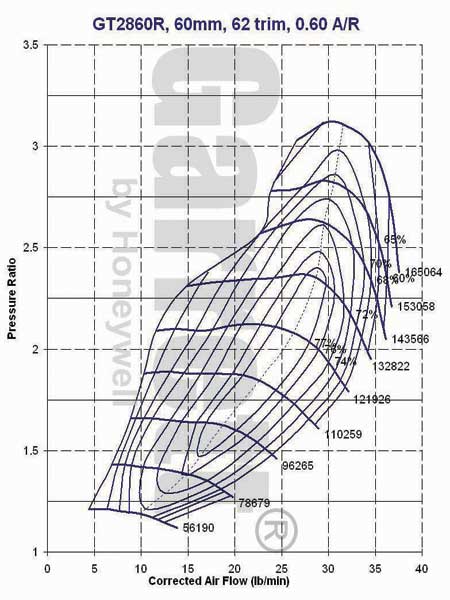

* Ball bearing * Oil & Water-cooled bearing system * T25 turbine inlet flange with threaded bolt holes instead of traditional through holes * Turbine housing has a unique "compact" 5-bolt outlet that is not interchangeable with traditional T25 5-bolt outlets * Turbine housing is cast from high-nickel "Ni-Resist" material for extreme applications * Turbine wheel is cast from "Inconel" material for extreme applications * Direct replacement upgrade turbocharger for GT2556R (702987-7) used on Nissan Skyline R34 GT-R * Great size for applications w/ packaging constraints * Ideal for smaller displacement engines making up to 360 hp * Turbine housing option available * Turbine housing options allow turbo to be outline-interchangeable with other turbos using the traditional 5-bolt turbine housing. Housing fits over turbine wheel but actuator/wastegate fitment may need to be adjusted. Compressor Map Turbine Map Dimensions Garrett Turbochargers Comparison Chart
